PowerDesigner:16

简介

PowerDesigner 通过脚本对表模型批量添加字段

脚本

Option Explicit

Dim mdl ' the current model
Set mdl = ActiveModel
Dim Tab 'running table
Dim col_1
Dim col_2
Dim col_3
Dim col_4
Dim col_5


' 定义属性变量
for each Tab in ActiveModel.Tables
   if Tab.name="Table_2" then
		Set col_1  = Tab.Columns.CreateNew
		Set col_2  = Tab.Columns.CreateNew
		Set col_3  = Tab.Columns.CreateNew
		Set col_4  = Tab.Columns.CreateNew
		Set col_5  = Tab.Columns.CreateNew


		'添加公共字段 by Sinu
		col_1.name = "order_day_moved0"
		col_2.name = "外部单据号"
		col_3.name = "抹零差异"
		col_4.name = "已付金额"
		col_5.name = "收货地址"

		col_1.code = "order_day_moved0"
		col_2.code = "out_order_no"
		col_3.code = "wipe_zero_diff"
		col_4.code = "paid_amount"
		col_5.code = "shipping_addr_id"

		col_1.DataType = "varchar"
		col_2.DataType = "varchar"
		col_3.DataType = "numeric"
		col_4.DataType = "numeric"
		col_5.DataType = "int4"
	end if

next
MsgBox "success"

执行添加

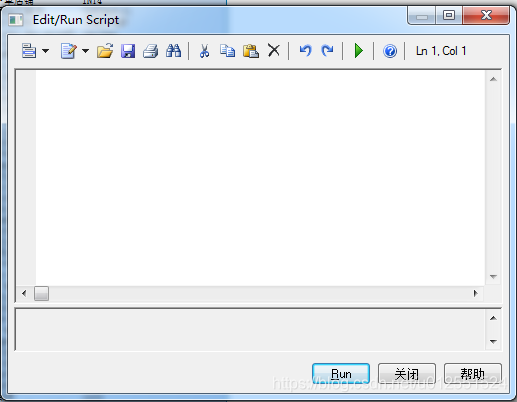

选中模型执行 Ctrl+Shift+X:

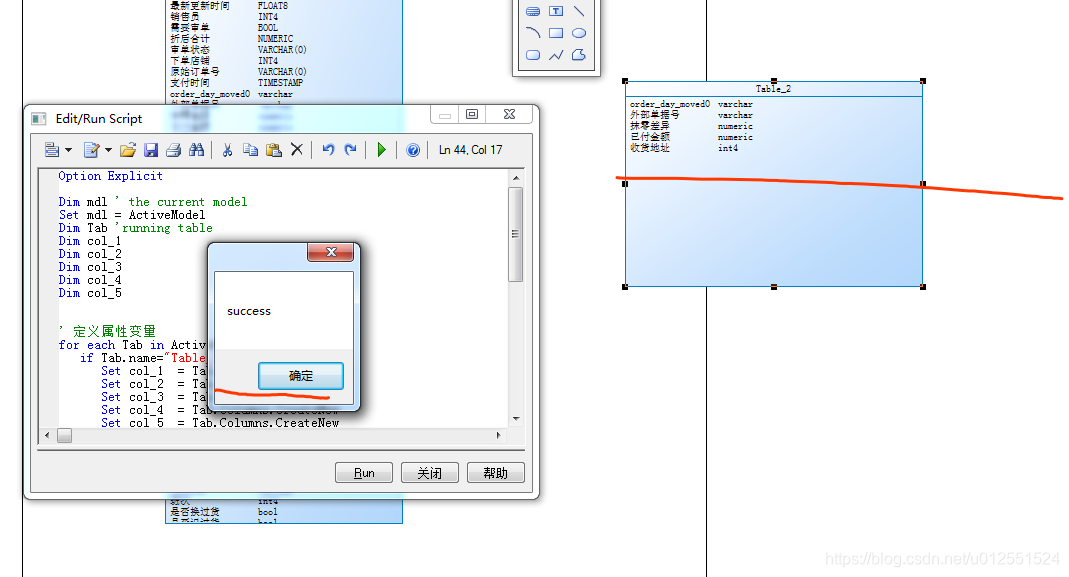

给Table_2批量添加字段：
