Flink流处理——Transform多流转换

Split 和 Selectsplit:DataStream → SplitStream：根据某些特征把一个 DataStream 拆分成两个或者多个 DataStream。Select:SplitStream→DataStream：从一个 SplitStream 中获取一个或者多个DataStreampackage com.atguigu.transfrom;import com.atguigu

天才少年137

1403人浏览 · 2021-11-12 17:57:58

天才少年137 · 2021-11-12 17:57:58 发布

Split 和 Select

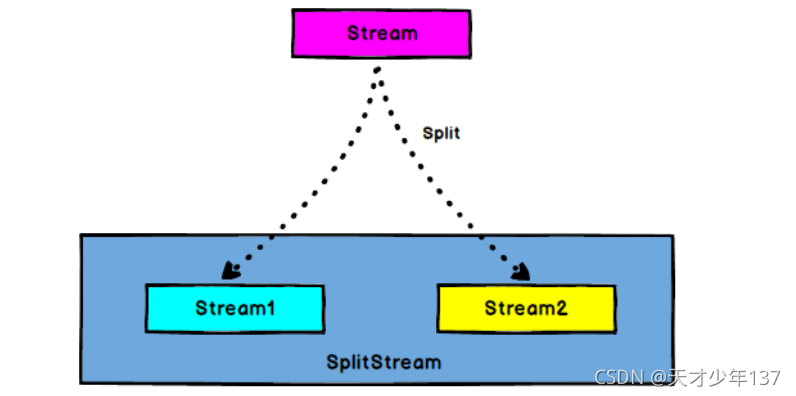

split:

DataStream → SplitStream：根据某些特征把一个 DataStream 拆分成两个或者多个 DataStream。

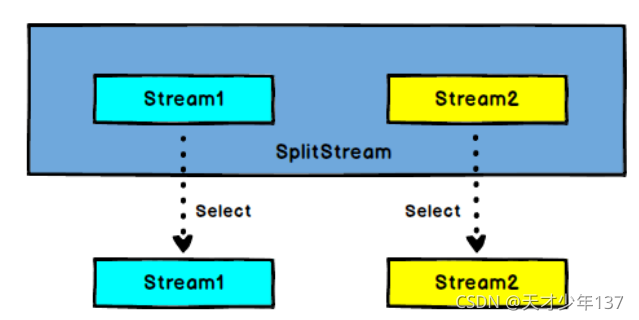

Select:

SplitStream→DataStream：从一个 SplitStream 中获取一个或者多个DataStream

package com.atguigu.transfrom;

import com.atguigu.bean.SensorReading;
import org.apache.flink.api.common.functions.ReduceFunction;
import org.apache.flink.api.java.tuple.Tuple;
import org.apache.flink.streaming.api.collector.selector.OutputSelector;
import org.apache.flink.streaming.api.datastream.*;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;

import java.util.Collections;

public class Test4 {
    public static void main(String[] args) throws Exception {
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        env.setParallelism(1);

        String path ="D:\\大数据组件API\\Flink\\Flink01\\src\\main\\resources\\test.txt";
        DataStreamSource<String> dataStream = env.readTextFile(path);

        DataStream<SensorReading> map = dataStream.map( value -> {
            String[] split = value.split(",");
            return new SensorReading(split[0], new Long(split[1]), new Double(split[2]));
        });

        SplitStream<SensorReading> split = map.split(new OutputSelector<SensorReading>() {
            @Override
            public Iterable<String> select(SensorReading value) {
                return (value.getTemperature() > 30 ? Collections.singletonList("high") : Collections.singletonList("low"));
            }
        });

        DataStream<SensorReading> high = split.select("high");
        DataStream<SensorReading> low = split.select("low");
        DataStream<SensorReading> all = split.select("all");


        high.print();
        env.execute();
    }
}

Connect 和 CoMap

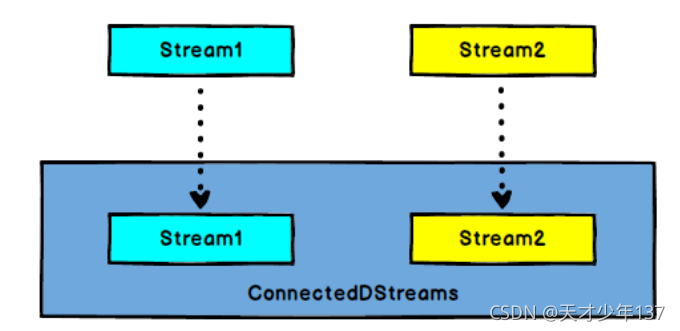

connect:

DataStream,DataStream → ConnectedStreams：连接两个保持他们类型的数据流，两个数据流被 Connect 之后，只是被放在了一个同一个流中，内部依然保持各自的数据和形式不发生任何变化，两个流相互独立

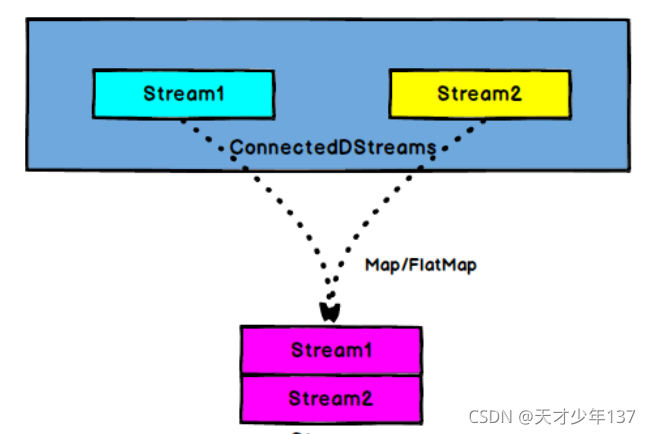

comap,coflatmap

ConnectedStreams → DataStream：作用于 ConnectedStreams 上，功能与 map和 flatMap 一样，对 ConnectedStreams 中的每一个 Stream 分别进行 map 和 flatMap处理

package com.atguigu.transfrom;

import com.atguigu.bean.SensorReading;
import org.apache.flink.api.common.functions.MapFunction;
import org.apache.flink.api.common.functions.ReduceFunction;
import org.apache.flink.api.java.tuple.Tuple;
import org.apache.flink.api.java.tuple.Tuple2;
import org.apache.flink.streaming.api.collector.selector.OutputSelector;
import org.apache.flink.streaming.api.datastream.*;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.co.CoFlatMapFunction;
import org.apache.flink.streaming.api.functions.co.CoMapFunction;
import org.apache.flink.util.Collector;

import java.util.Collections;

public class Test4 {
    public static void main(String[] args) throws Exception {
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        env.setParallelism(1);

        String path ="D:\\大数据组件API\\Flink\\Flink01\\src\\main\\resources\\test.txt";
        DataStreamSource<String> dataStream = env.readTextFile(path);

        DataStream<SensorReading> map = dataStream.map( value -> {
            String[] split = value.split(",");
            return new SensorReading(split[0], new Long(split[1]), new Double(split[2]));
        });

        SplitStream<SensorReading> split = map.split(new OutputSelector<SensorReading>() {
            @Override
            public Iterable<String> select(SensorReading value) {
                return (value.getTemperature() > 30 ? Collections.singletonList("high") : Collections.singletonList("low"));
            }
        });

        DataStream<SensorReading> high = split.select("high");
        DataStream<SensorReading> low = split.select("low");
        DataStream<SensorReading> all = split.select("all");

        SingleOutputStreamOperator<Tuple2<String, Double>> warnStream = high.map(new MapFunction<SensorReading, Tuple2<String, Double>>() {
            @Override
            public Tuple2<String, Double> map(SensorReading value) throws Exception {
                return new Tuple2<>(value.getId(), value.getTemperature());
            }
        });

        ConnectedStreams<Tuple2<String, Double>, SensorReading> connectedStreams = warnStream.connect(low);

        SingleOutputStreamOperator<String> outputStreamOperator = connectedStreams.map(new CoMapFunction<Tuple2<String, Double>, SensorReading, String>() {
            @Override
            public String map1(Tuple2<String, Double> value) throws Exception {
                return value.getField(1);
            }

            @Override
            public String map2(SensorReading value) throws Exception {
                return value.getId();
            }
        });


        outputStreamOperator.print();
        env.execute();
    }
}
